SEPA KOREA PUMP
(Sanitary Pump, Chemical Pump, Mechanical Seal)
Single Outside Seal

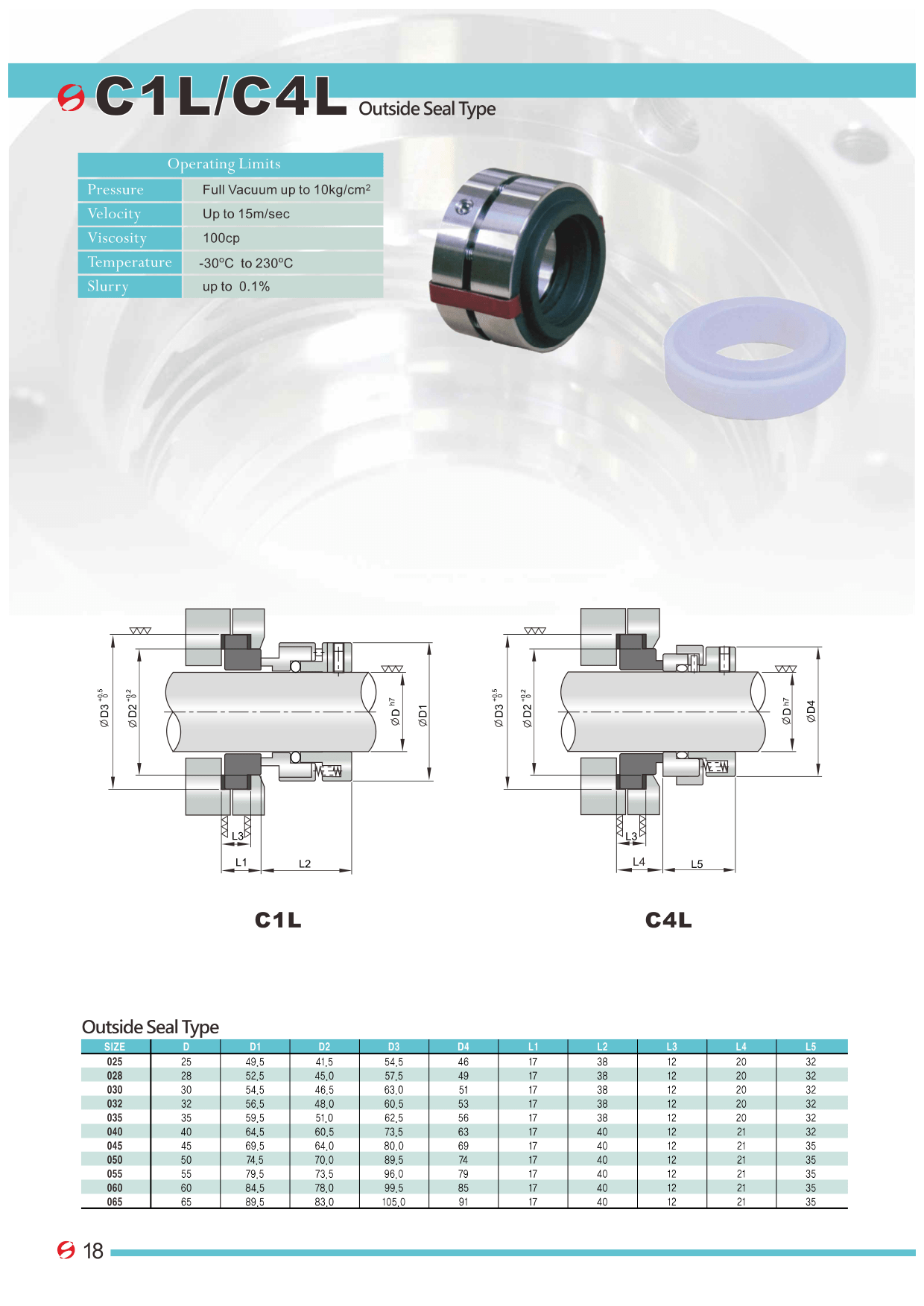

C1L/C4L Outside Seal Type
Single Outside Seal - C1L/C4L Outside Seal Type
FEATURES
Operating Limits
Pressure : Full Vacuum up to 10kg/cm2
Velocuty : Up to 15m/sec
Viscosity : 100cp
Temperature : -30deg.C ~ 230deg.C
Slurry : Up to 0.1%
1. Seal Face Materials
A : Carbon / B : Stellite Coat / C : Ceramic Coat / D : T/C Coat
E : T/C Plate / F : SIC Plate / G : Ceramic (AL2O3) / H : Solid SIC
I : Solid T/C / S : Special
2. Packing Materials
C : Teflon Carbon / E : E.P.R / G : Grafoil / K : Kalrez
N : N.B.R / P : Perfluoro / Q : F.E.P (Glass Filled Teflon)
T : Teflon / V : Viton
3. Body & Spring Materials
2 : Carpenter 20 / 3 : Titanium / 4 : STS304
5 : STS316L / 6 : STS316 / 7 : Hastelloy B
8 : Hastelloy C / 9 : Monel Alloy

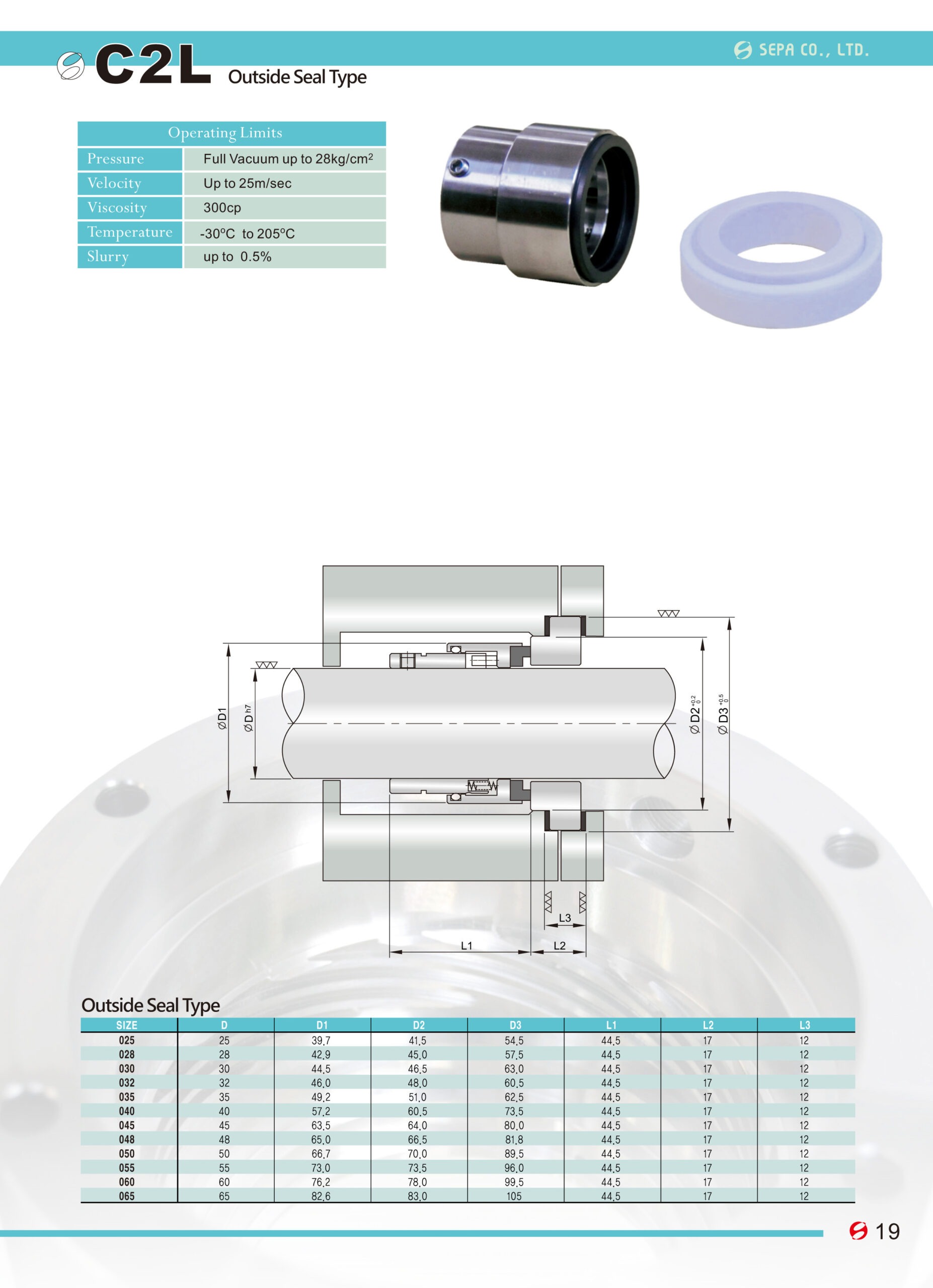

C2L Outside Seal Type
Single Outside Seal - C2L Outside Seal Type
FEATURES
Operating Limits
Pressure : Full Vacuum up to 28kg/cm2
Velocuty : Up to 25m/sec
Viscosity : 300cp
Temperature : -30deg.C ~ 205deg.C
Slurry : Up to 0.5%
1. Seal Face Materials
A : Carbon / B : Stellite Coat / C : Ceramic Coat / D : T/C Coat
E : T/C Plate / F : SIC Plate / G : Ceramic (AL2O3) / H : Solid SIC
I : Solid T/C / S : Special
2. Packing Materials
C : Teflon Carbon / E : E.P.R / G : Grafoil / K : Kalrez
N : N.B.R / P : Perfluoro / Q : F.E.P (Glass Filled Teflon)
T : Teflon / V : Viton
3. Body & Spring Materials
2 : Carpenter 20 / 3 : Titanium / 4 : STS304
5 : STS316L / 6 : STS316 / 7 : Hastelloy B
8 : Hastelloy C / 9 : Monel Alloy

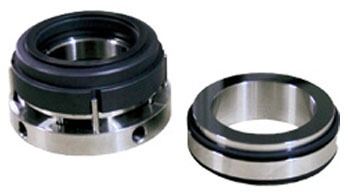

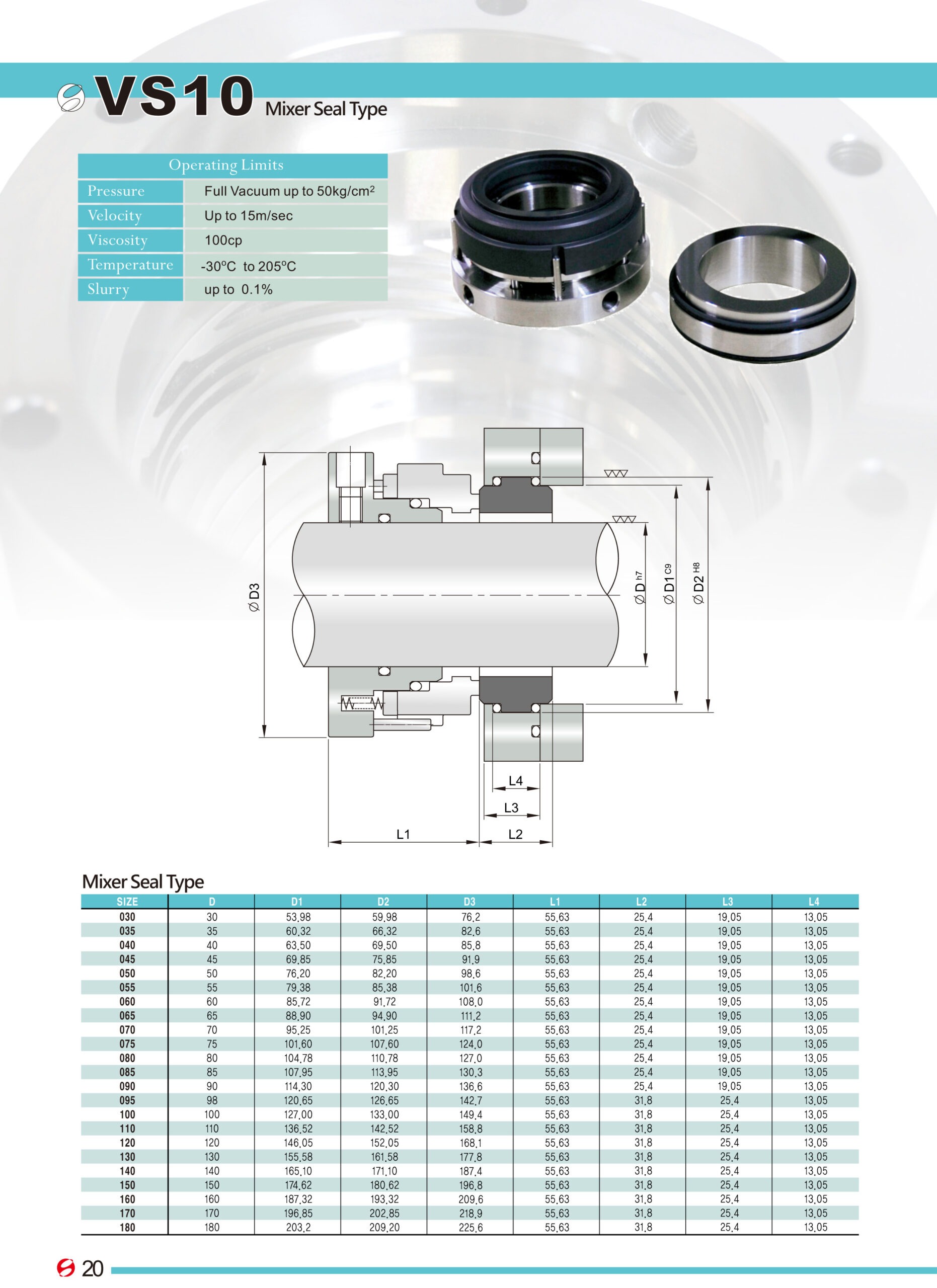

VS10 Mixer Seal Type
Single Outside Seal - VS10 Mixer Seal Type
FEATURES
Operating Limits
Pressure : Full Vacuum up to 50kg/cm2
Velocuty : Up to 15m/sec
Viscosity : 100cp
Temperature : -30deg.C ~ 205deg.C
Slurry : Up to 0.1%
1. Seal Face Materials
A : Carbon / B : Stellite Coat / C : Ceramic Coat / D : T/C Coat
E : T/C Plate / F : SIC Plate / G : Ceramic (AL2O3) / H : Solid SIC
I : Solid T/C / S : Special
2. Packing Materials
C : Teflon Carbon / E : E.P.R / G : Grafoil / K : Kalrez
N : N.B.R / P : Perfluoro / Q : F.E.P (Glass Filled Teflon)
T : Teflon / V : Viton
3. Body & Spring Materials
2 : Carpenter 20 / 3 : Titanium / 4 : STS304
5 : STS316L / 6 : STS316 / 7 : Hastelloy B
8 : Hastelloy C / 9 : Monel Alloy
